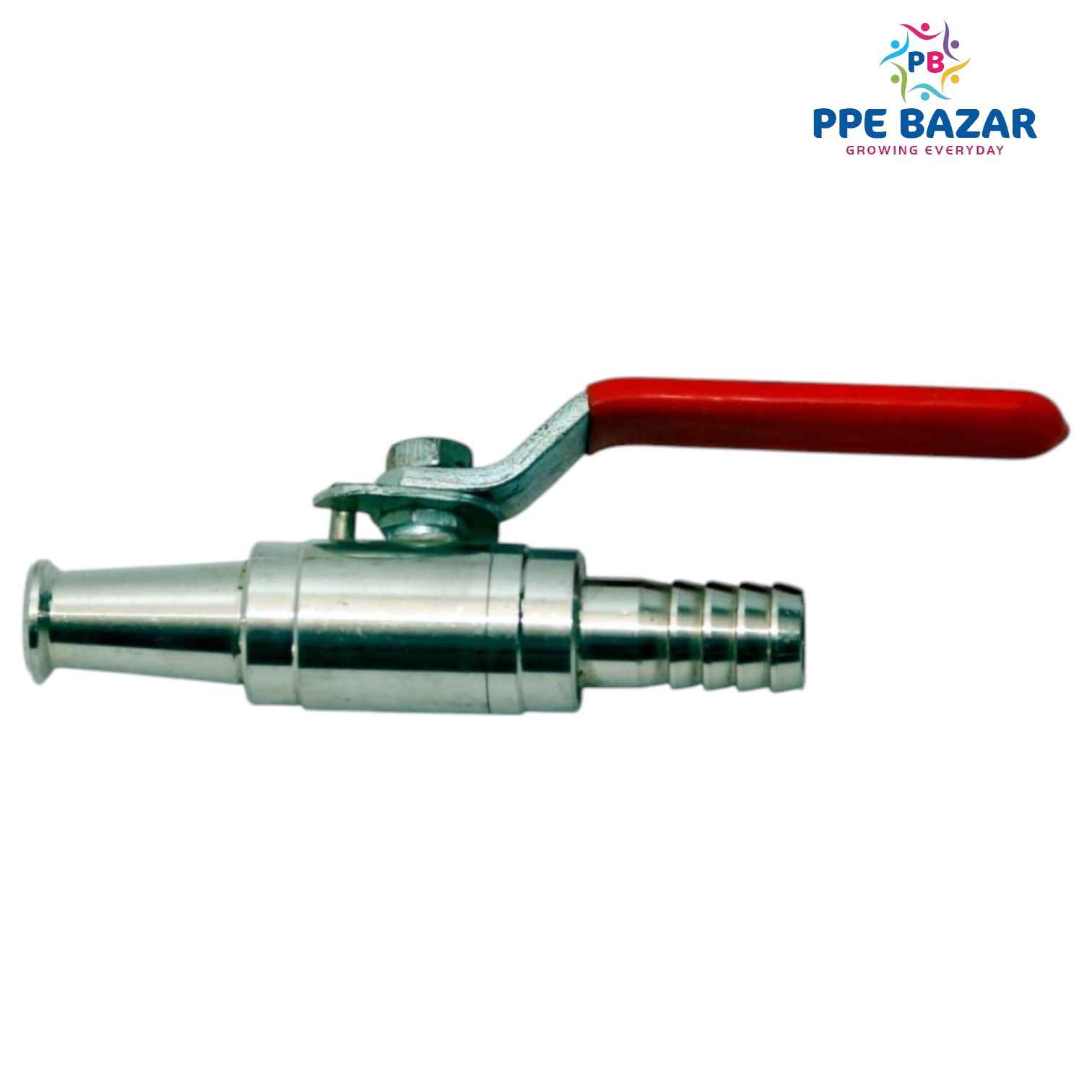

Shut off Nozzle for Hose Reel SS 19mm dia (Pack of 4 Nos)
0
0 Reviews0 Orders 0 Wish listed
₹1,800.00 + GST
MRP ₹2,000.0010 % Off
Product Description:
The Shut-Off Nozzle for Hose Reel (19 mm dia) is a precision-engineered fire-fighting accessory designed to control and direct water flow from hose reels used in first-aid firefighting applications. Made from high-quality Stainless Steel (SS304 or SS316), the nozzle is built for durability, corrosion resistance, and reliability in demanding environments.
This nozzle is designed for easy operation, allowing users to quickly open, close, or adjust the water stream — typically from jet to spray — using a twist or lever mechanism. It is suitable for mounting on 19 mm internal diameter hose reels, commonly found in commercial buildings, offices, and industrial facilities.
Specifications:
Parameter
Details
Product Name
Shut-Off Nozzle for Hose Reel (19 mm dia)
Material
Stainless Steel (SS304 or SS316)
Inlet Size
Suitable for 19 mm internal diameter hose connection
Type
Shut-Off Nozzle with adjustable spray pattern (Jet/Spray)
Operation Mechanism
Twist-type or Lever-type shut-off control
Working Pressure
Up to 12 kg/cm²
Flow Rate
Approx. 60–90 LPM @ 6–7 kg/cm²
Finish
Polished natural stainless steel or brushed finish
Sealing
High-quality rubber O-rings/gaskets for leak-proof operation
Thread Compatibility
Typically BSP or custom-fit hose tail (as per hose reel configuration)
Temperature Resistance
Suitable for ambient and hot water up to 65°C
Weight
Approx. 0.5 – 0.8 kg
Usage
For use with manual or automatic hose reels in fire protection systems
Key Features:
Durable SS Construction: Ensures long life, even in corrosive or humid environments.
User-Friendly Operation: Easy twist or lever-based on/off and spray adjustment.
Controlled Flow: Enables precise targeting of the water stream for effective firefighting.
Compact Design: Lightweight and ergonomic for quick deployment.
Standards Compliant: Designed to integrate with standard 19 mm hose reel systems.
