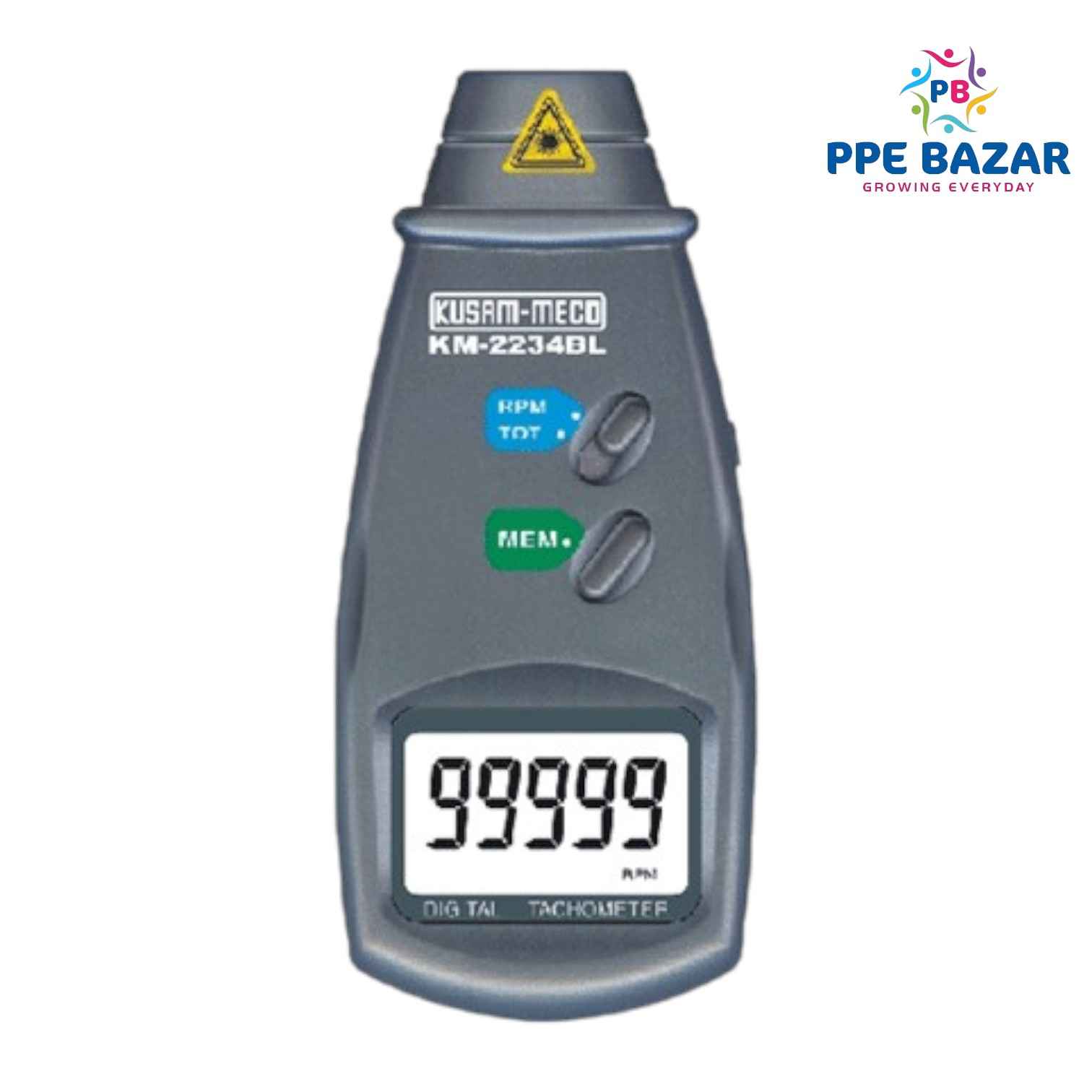

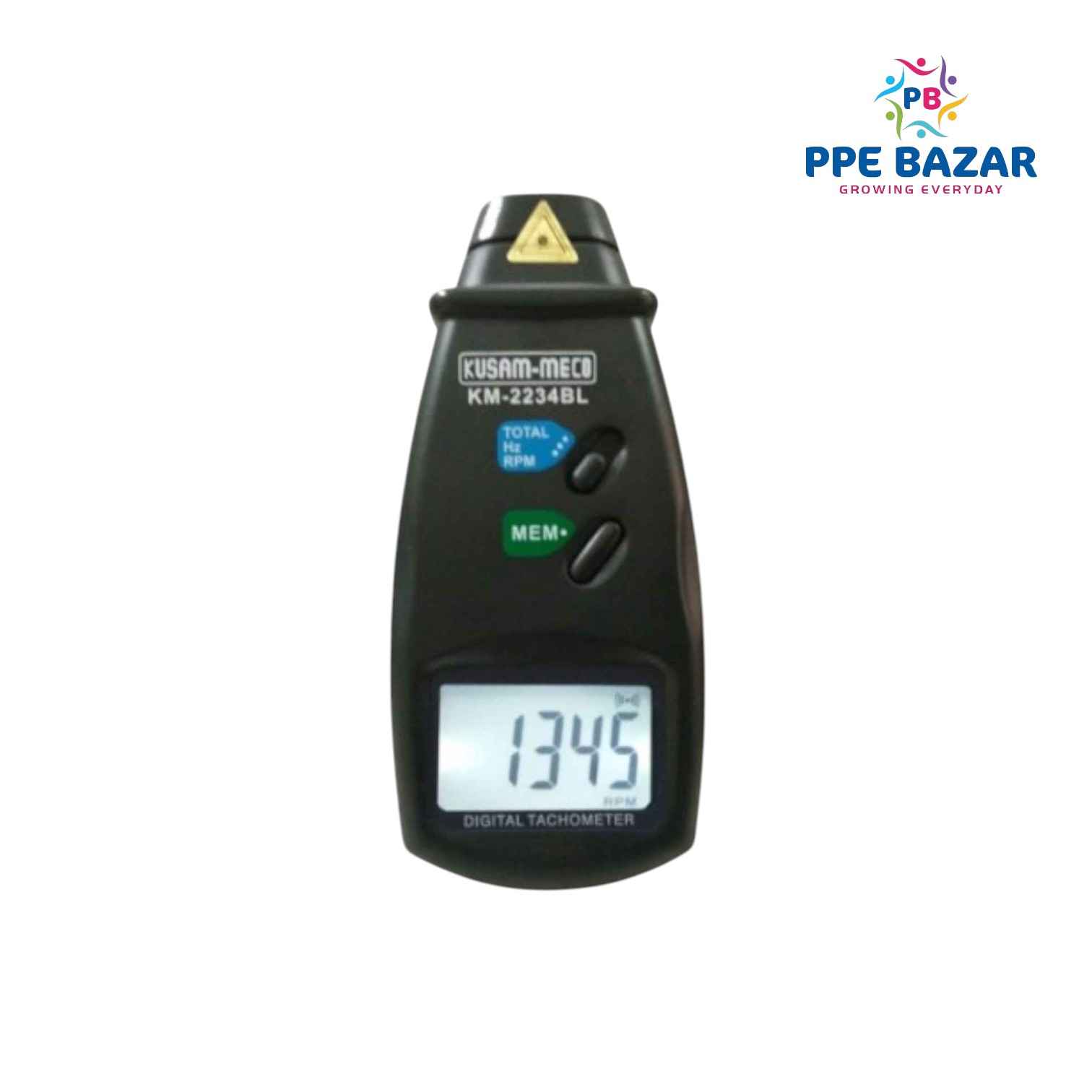

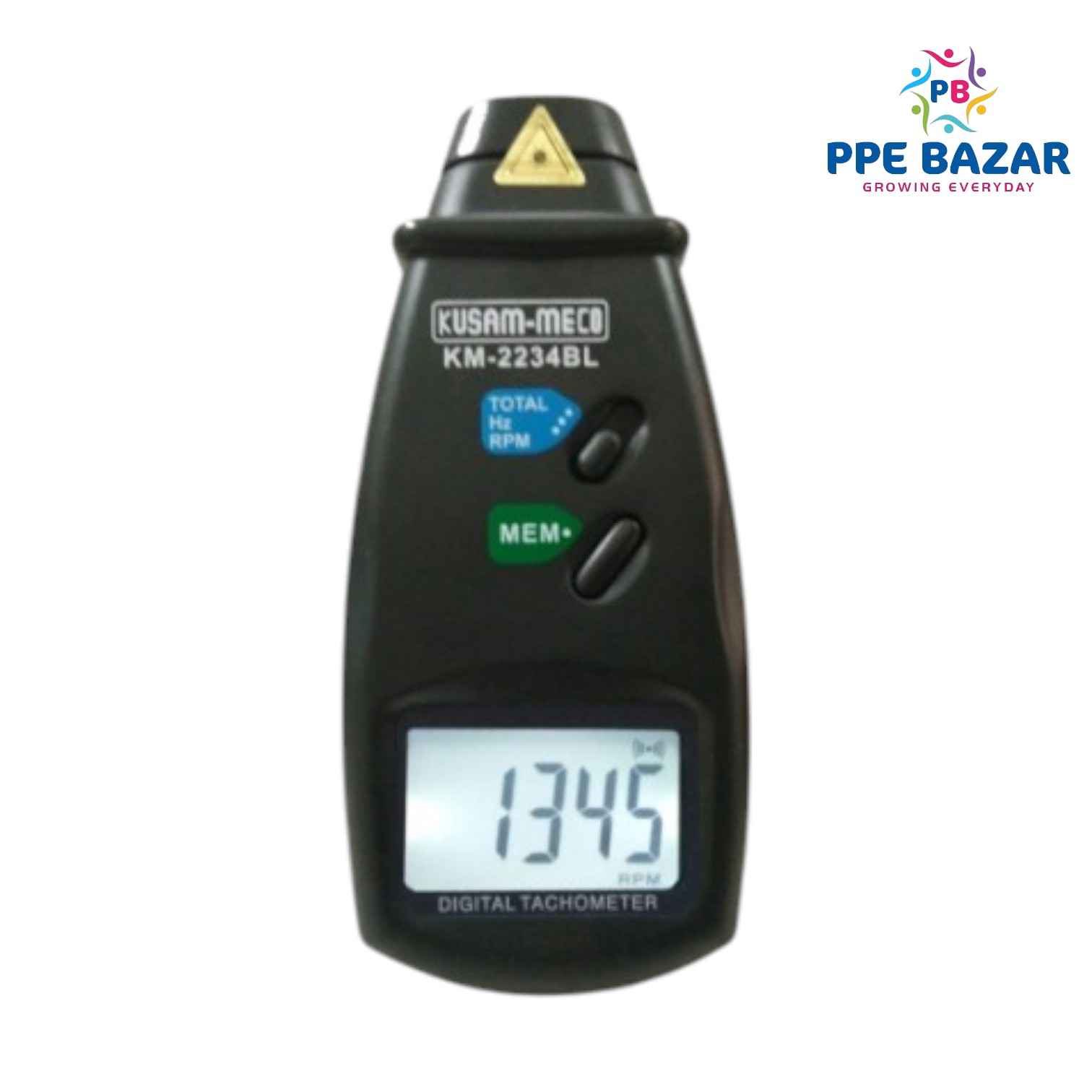

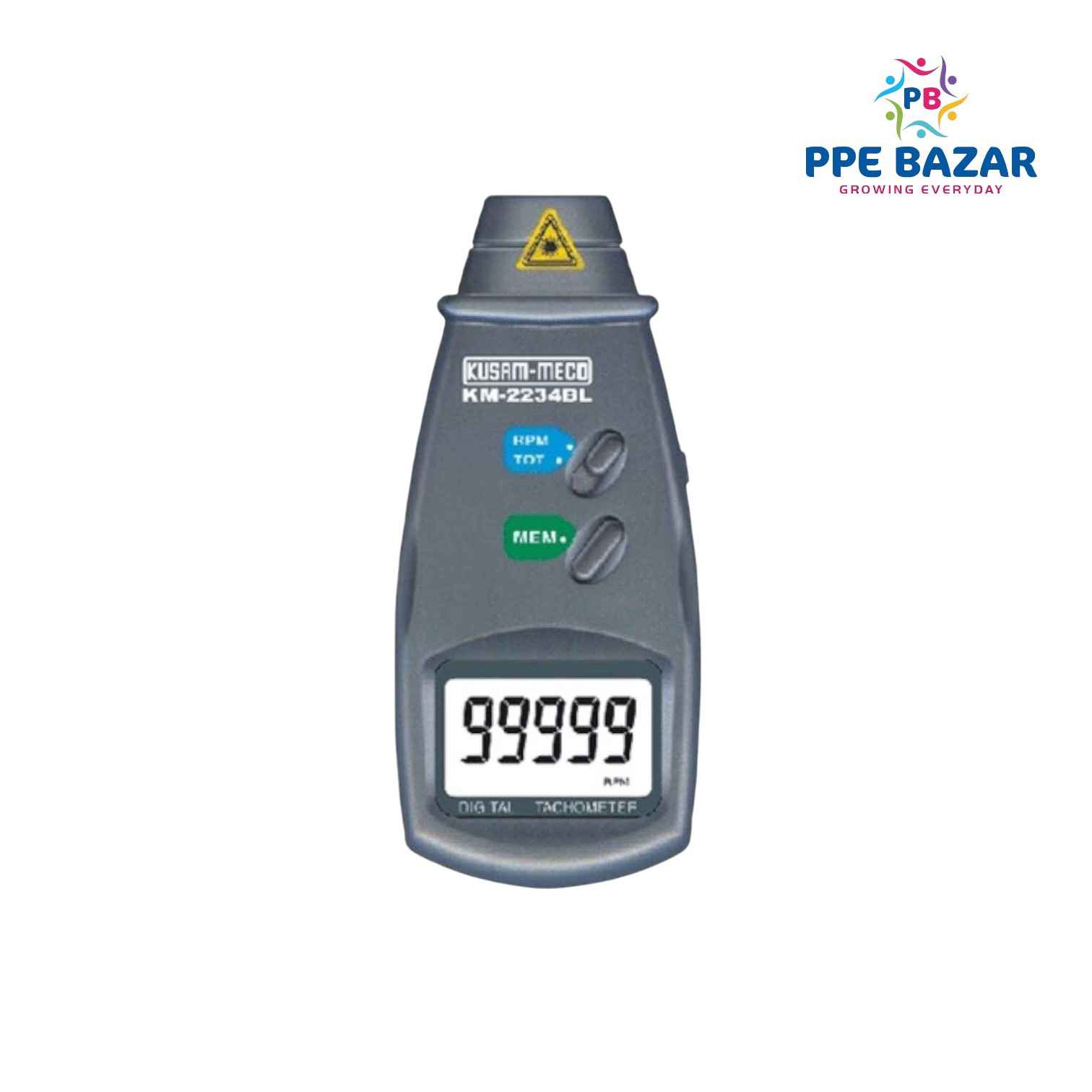

The Kusam Meco KM-2234BL is a high-precision, non-contact digital tachometer designed for accurate RPM (revolutions per minute) measurement of rotating objects. Compact and user-friendly, it is ideal for a range of industrial, laboratory, and workshop applications. Its ergonomic design ensures comfortable handling, while its durable build guarantees longevity.

Key Features

• Non-Contact Operation: Measures RPM without physical contact, enhancing safety and efficiency.
• Wide Measurement Range:
  • Standard Range: 5–9999 RPM
  • Extended Range: 99,999 RPM (with high-accuracy capability).
• Backlit Display: A large, easy-to-read digital screen with a backlight for use in low-light environments.
• High Accuracy: Reliable measurement with minimal error margins.
• Memory Function: Stores maximum, minimum, and last-measured values for easy reference.
• Ergonomic Design: Lightweight and portable, ensuring ease of use during prolonged operations.
• Durable Build: Constructed with quality materials for industrial-grade reliability.

Technical Specifications

1. Measurement Type: Non-contact
2. Measuring Range: 5-9999 RPM (Standard) and up to 99,999 RPM (Extended).
3. Display: Large LCD with backlight.
4. Resolution: 0.1 RPM for lower range, 1 RPM for higher range.
5. Accuracy: ±(0.05% + 1 digit) of the reading.
6. Detection Method: Infrared reflection with laser targeting for precise measurement.
7. Operating Distance: Optimal measurement range of 50 mm to 500 mm.
8. Power Supply: Powered by standard batteries (typically 9V or AA, as specified in the user manual).
9. Operating Temperature: 0°C to 50°C.
10. Weight: Lightweight for portability (approximately 200–300 g).

Applications

• Industrial equipment maintenance
• Laboratory experiments
• Automotive diagnostics
• Machinery calibration and monitoring
• Quality control in manufacturing

Package Includes

• Kusam Meco KM-2234BL Digital Tachometer
• Reflective tape for measurement
• Protective carrying case
• Instruction manual
