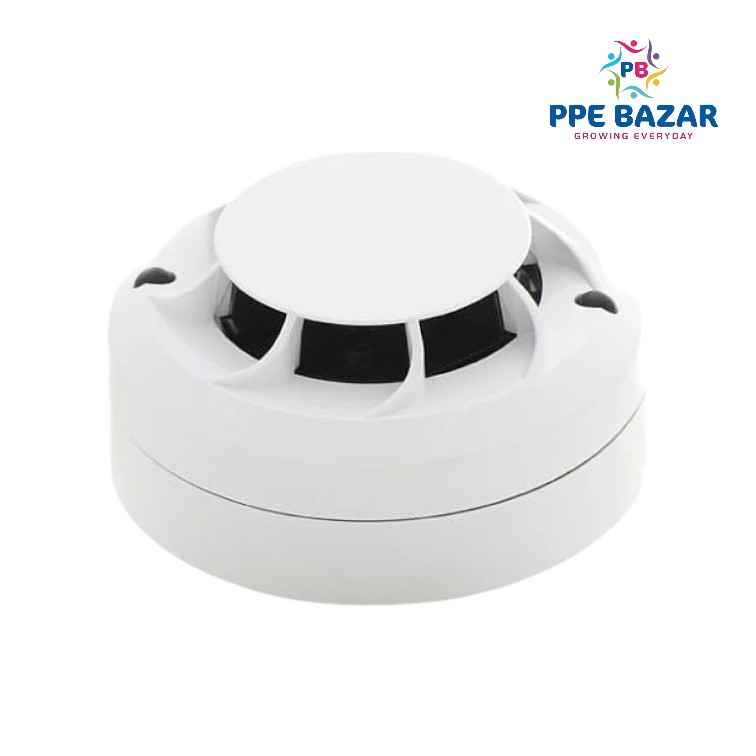

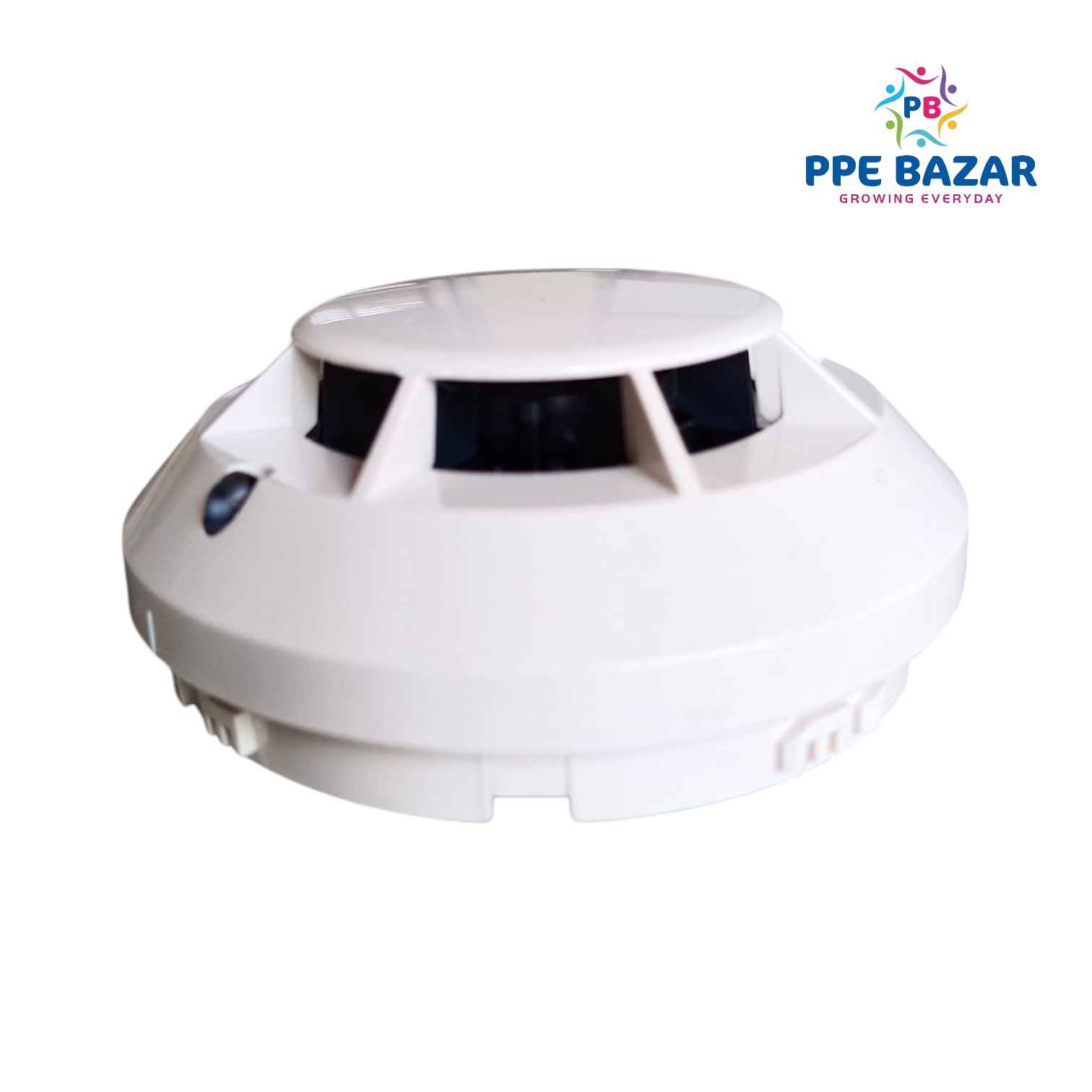

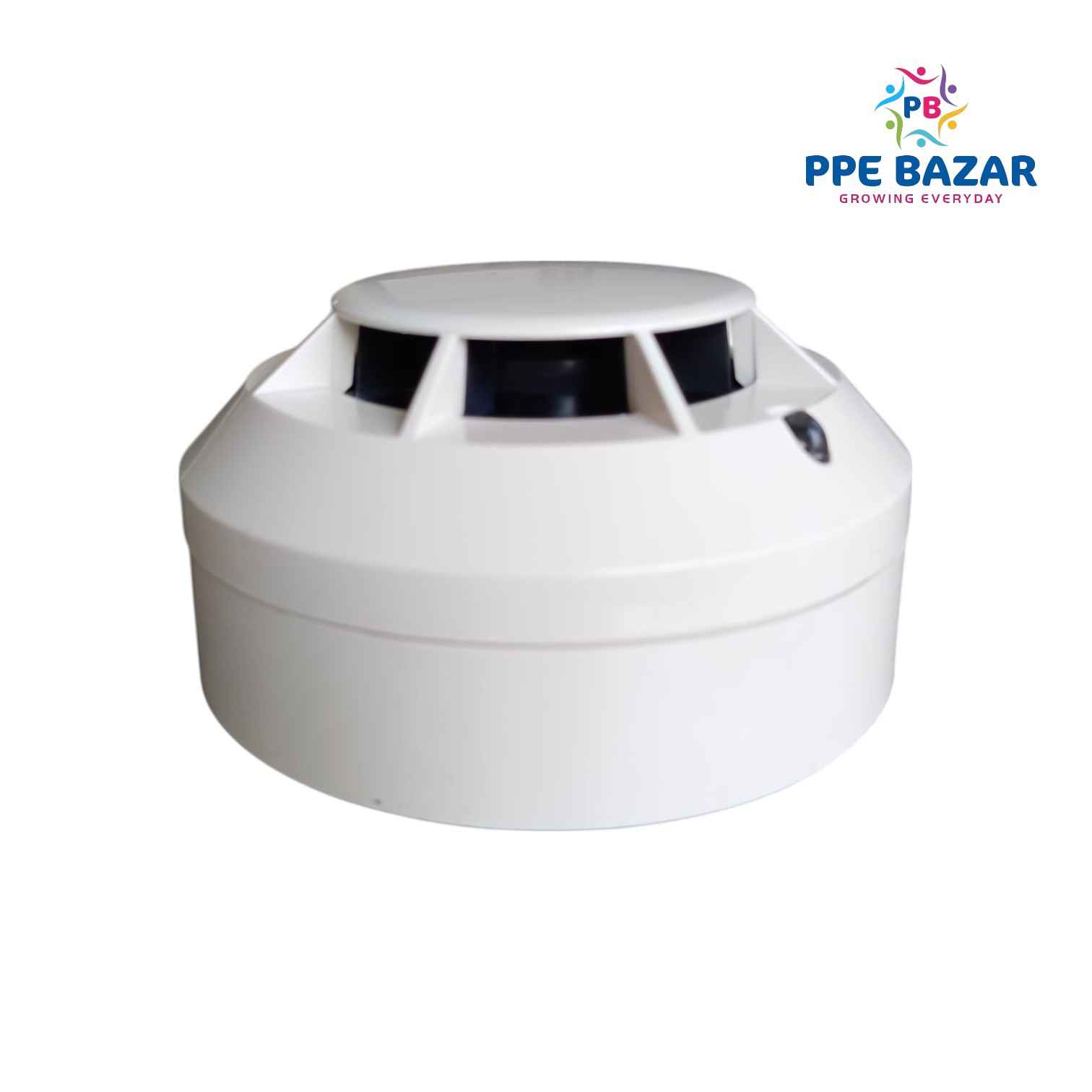

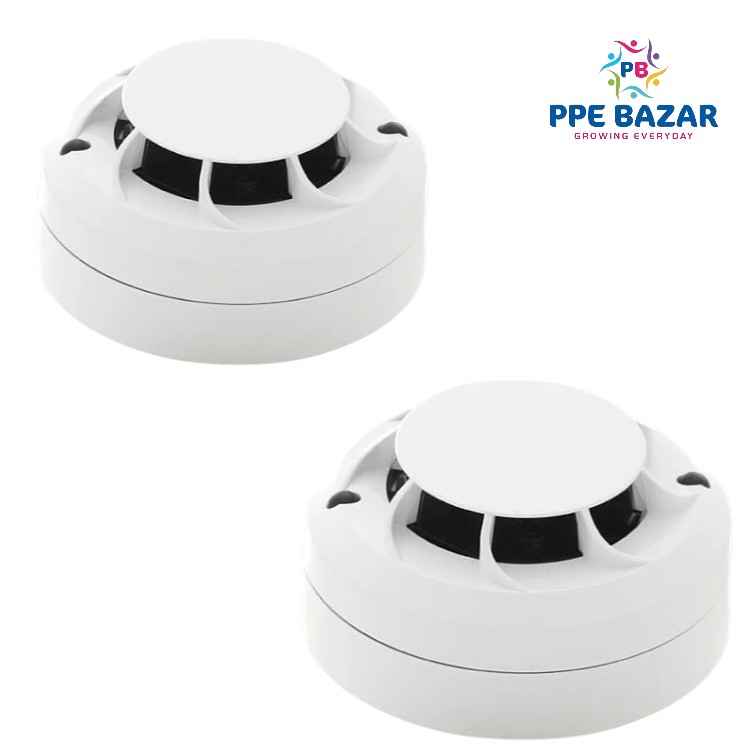

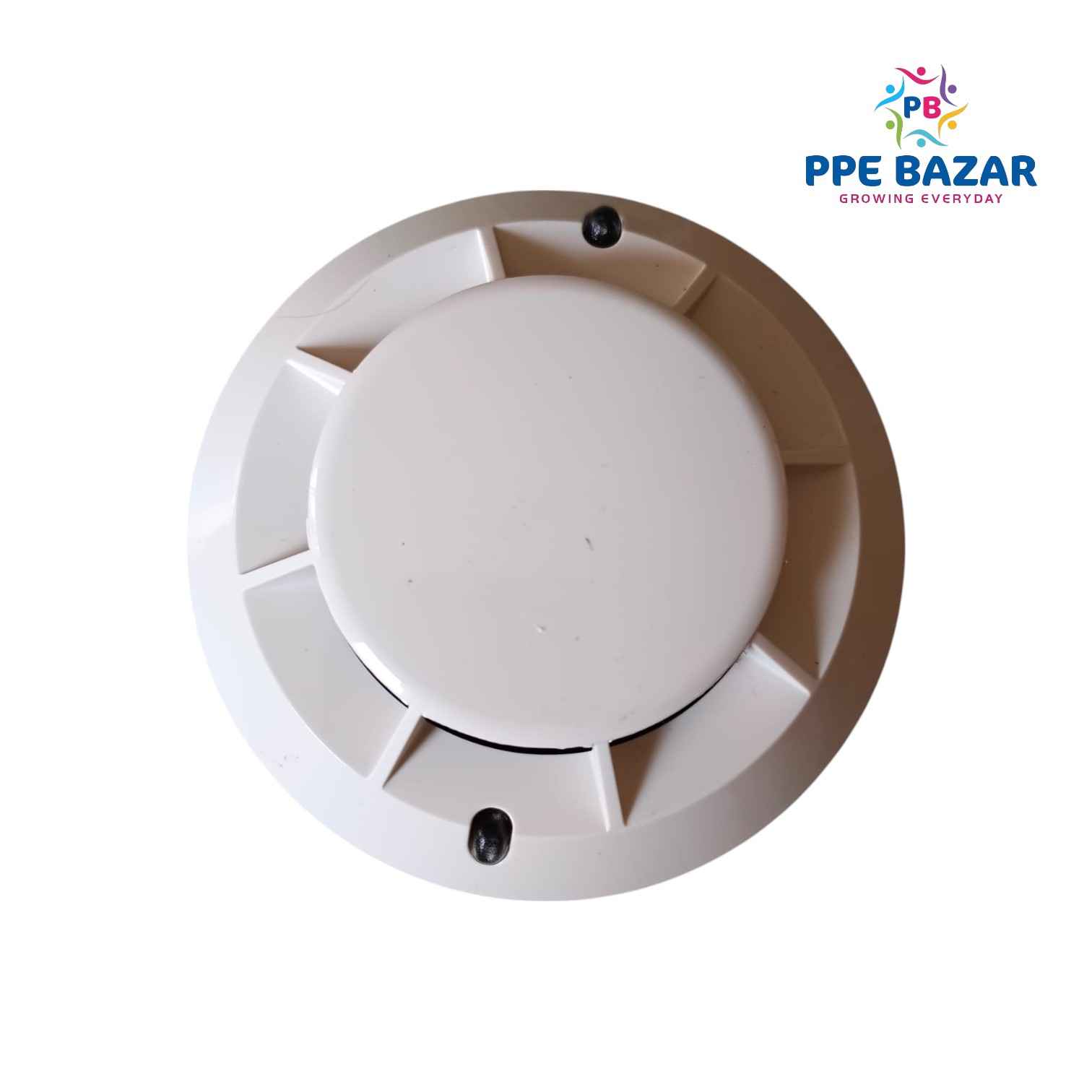

The Honeywell HM/PSE/AP+B501 is an advanced, high-sensitivity photoelectric smoke detector, designed for reliable fire detection in commercial, industrial, and residential environments. Engineered with state-of-the-art sensing technology, it effectively identifies smoke particles produced by smoldering and flaming fires, ensuring early warning. This detector is compatible with Honeywell's fire alarm control panels and is paired with the B501 mounting base for secure and easy installation.

Key Features:

1. Photoelectric Sensing Technology: Optimized for early detection of smoke, particularly from smoldering fires.
2. Low Profile Design: Aesthetically pleasing and space-saving, blending seamlessly into various environments.
3. Advanced Algorithms: Reduces false alarms caused by dust, steam, or other environmental factors.
4. LED Indicator: Provides clear status visibility for operation, fault, or alarm states.

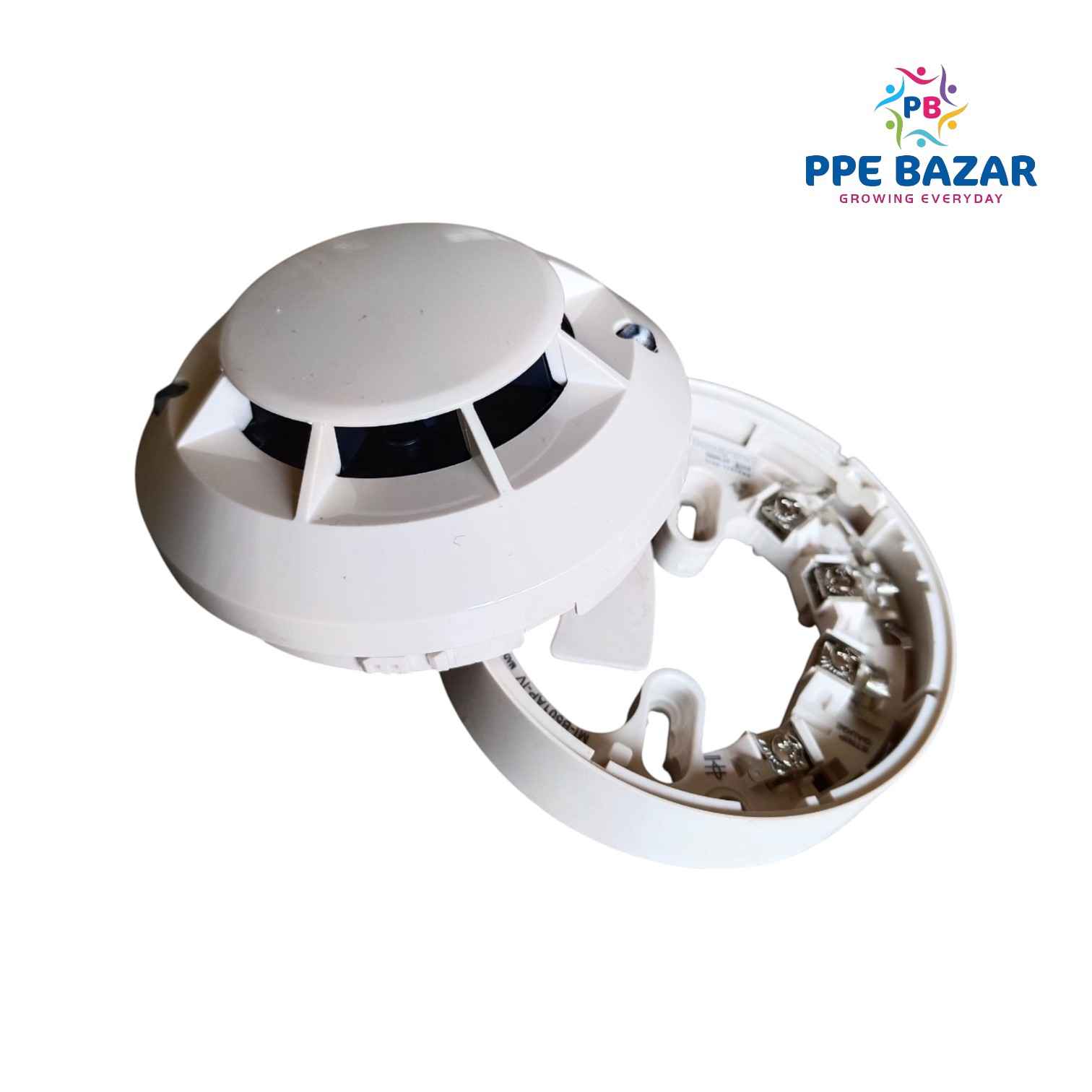

5. Plug-In Mounting Base (B501): Allows for quick installation and easy replacement.
6. Remote Test Capability: Supports testing without physical access to the device, enhancing maintenance efficiency.
7. Wide Application Range: Suitable for offices, retail spaces, warehouses, and public buildings.

Specifications:

• Model: HM/PSE/AP
• Base: B501
• Detection Method: Photoelectric sensing
• Operating Voltage: 15-32 V DC
• Standby Current: 300 µA max
• Alarm Current: 6.5 mA max at 24 V DC
• Operating Temperature Range: 0°C to 49°C
• Humidity Range: 10% to 93% RH (non-condensing)
• Dimensions:
  • Detector: 102 mm diameter
  • Base: 102 mm diameter
• Weight: Approximately 150 g (with base)
• Certifications:
  • UL Listed
  • FM Approved
  • CE Marked
• Compatibility: Works with Honeywell fire alarm control panels supporting analog addressable protocols.

Application Areas:

• Commercial complexes
• Residential buildings
• Hospitals and healthcare facilities
• Warehouses and factories
• Educational institutions

Additional Notes:

• Ensure regular maintenance for optimal performance.
• Follow local fire safety codes and installation guidelines during setup.
• Replace or clean as recommended to prevent dust accumulation and ensure long-term reliability.
