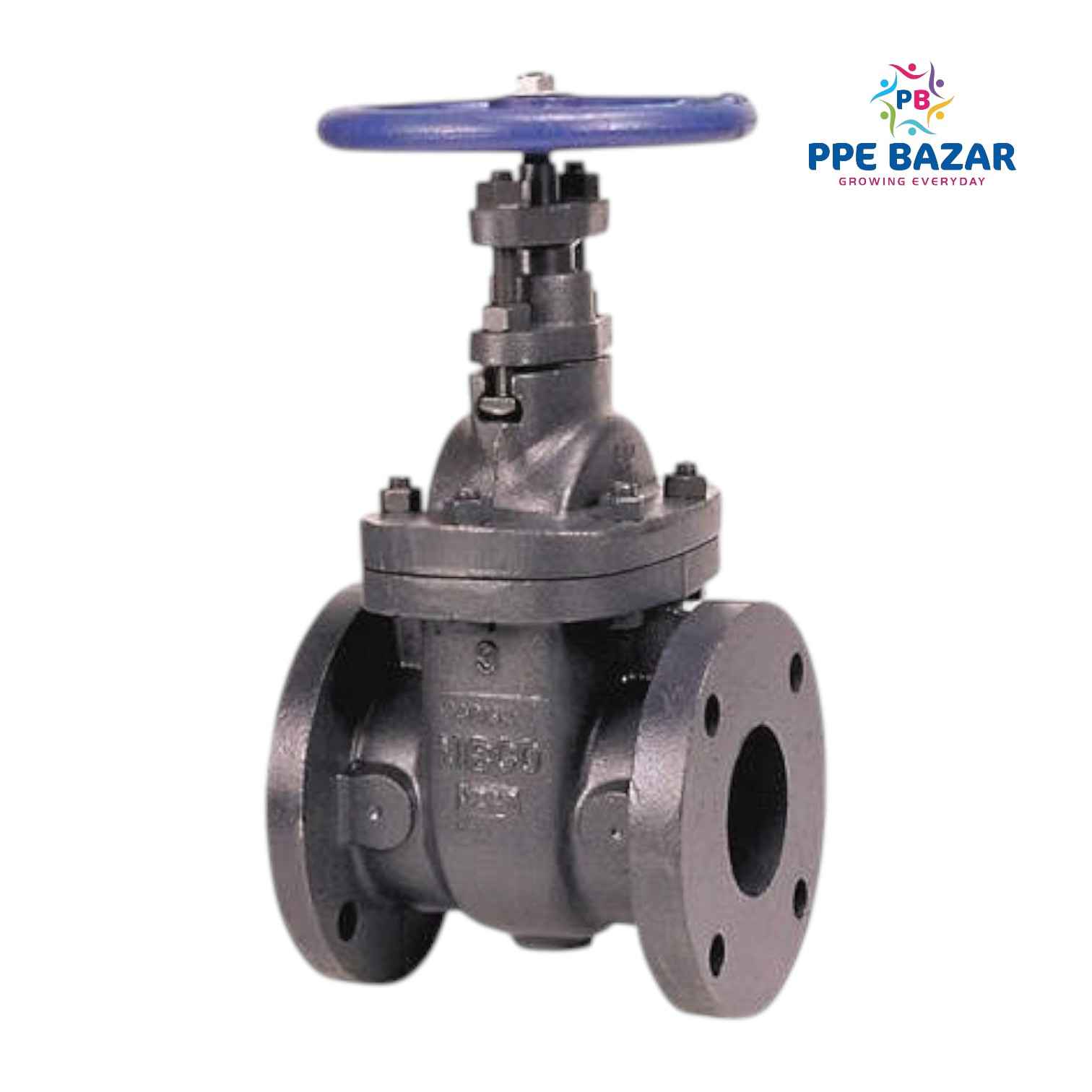

CI Gate Valve (Sluice Valve) 3" MM ISI Mark 13846 PN16 Rating NON Rising Spindle

0 Reviews 0 Orders 0 Wish listed

₹6,582.40 + GST

MRP ₹7,480.00 12 % Off

The Cast Iron Gate Valve (Sluice Valve) is a heavy-duty, manually operated valve designed to isolate flow in pipelines. Manufactured as per IS 14846 and ISI certified, this 3” (80mm) valve features a...

The Cast Iron Gate Valve (Sluice Valve) is a heavy-duty, manually operated valve designed to isolate flow in pipelines. Manufactured as per IS 14846 and ISI certified, this 3” (80mm) valve features a Non-Rising Spindle (NRS) design, making it ideal for installations where vertical clearance is limited. With a PN16 pressure rating, the valve is suitable for waterworks, fire protection, sewage, and industrial pipelines.

Technical Specifications:

Feature	Details
Valve Type	Gate Valve / Sluice Valve
Size	3” (80mm)
Design Standard	IS 14846:2000
ISI Mark	Yes – ISI Certified (ISI Marked as per IS 14846)
Body Material	Cast Iron (CI) – IS 210 Gr. FG 200
Wedge / Gate	Cast Iron / Ductile Iron with Nitrile / EPDM Rubber Coating
Spindle Type	Non-Rising Spindle (NRS)
Spindle Material	Stainless Steel / Bronze / Carbon Steel (as per spec)
End Connection	Flanged Ends – Drilled as per IS 1538 / PN16
Pressure Rating	PN16 (16 bar)
Test Pressure	Body: 24 bar, Seat: 17.6 bar
Coating	Internal & External Fusion Bonded Epoxy / Black Bitumen Paint
Operation	Manual Handwheel Operated
Temperature Range	0°C to 80°C (Water applications)
Face-to-Face Dimension	As per IS 14846 / Manufacturer Standard
Application Media	Potable Water, Raw Water, Sewage, Fire Fighting Systems
Installation Position	Horizontal / Vertical
Weight	Approx. 25 – 35 kg (may vary slightly by make)
